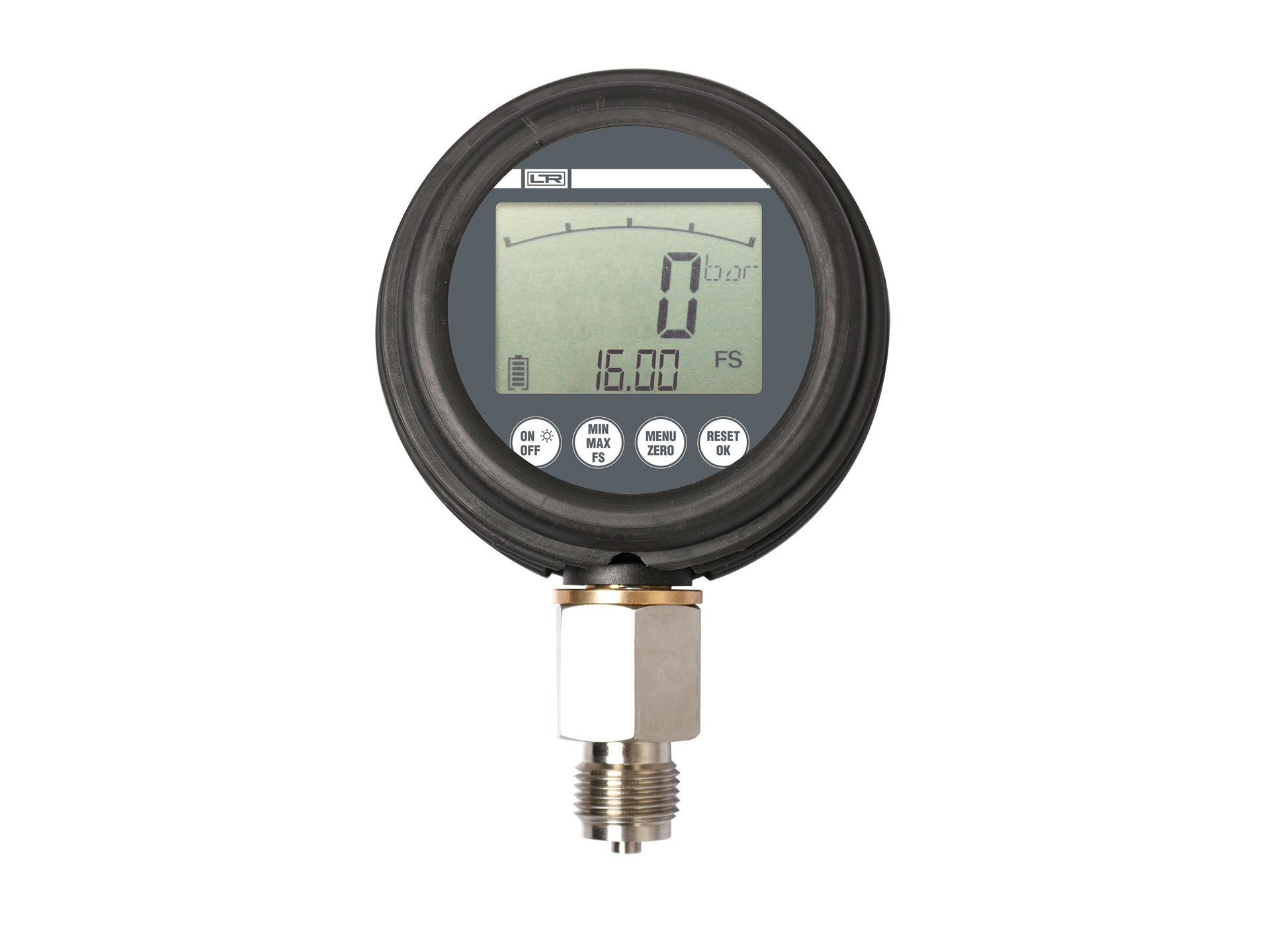

Hydraulic digital pressure gauge in metal housing

The DM80 series digital pressure gauges provide precise measurements and displays of pressures in hydraulic systems, especially for applications involving oils and water . With a measuring range of -200 mbar to 1000 bar and an impressive accuracy of ±0.5% of full scale, they not only record current readings, but also min and max values for comprehensive pressure monitoring.

main features

• Measuring range : -200 mbar to 1000 bar (other pressure ranges on request)
• Diameter : 80 mm
• Material : Stainless steel measuring cell for durability and reliability
• Display : Bar graph and peak value display with 16 mm high digits and backlight
• Accuracy : ±0.5% FS (Full Scale)

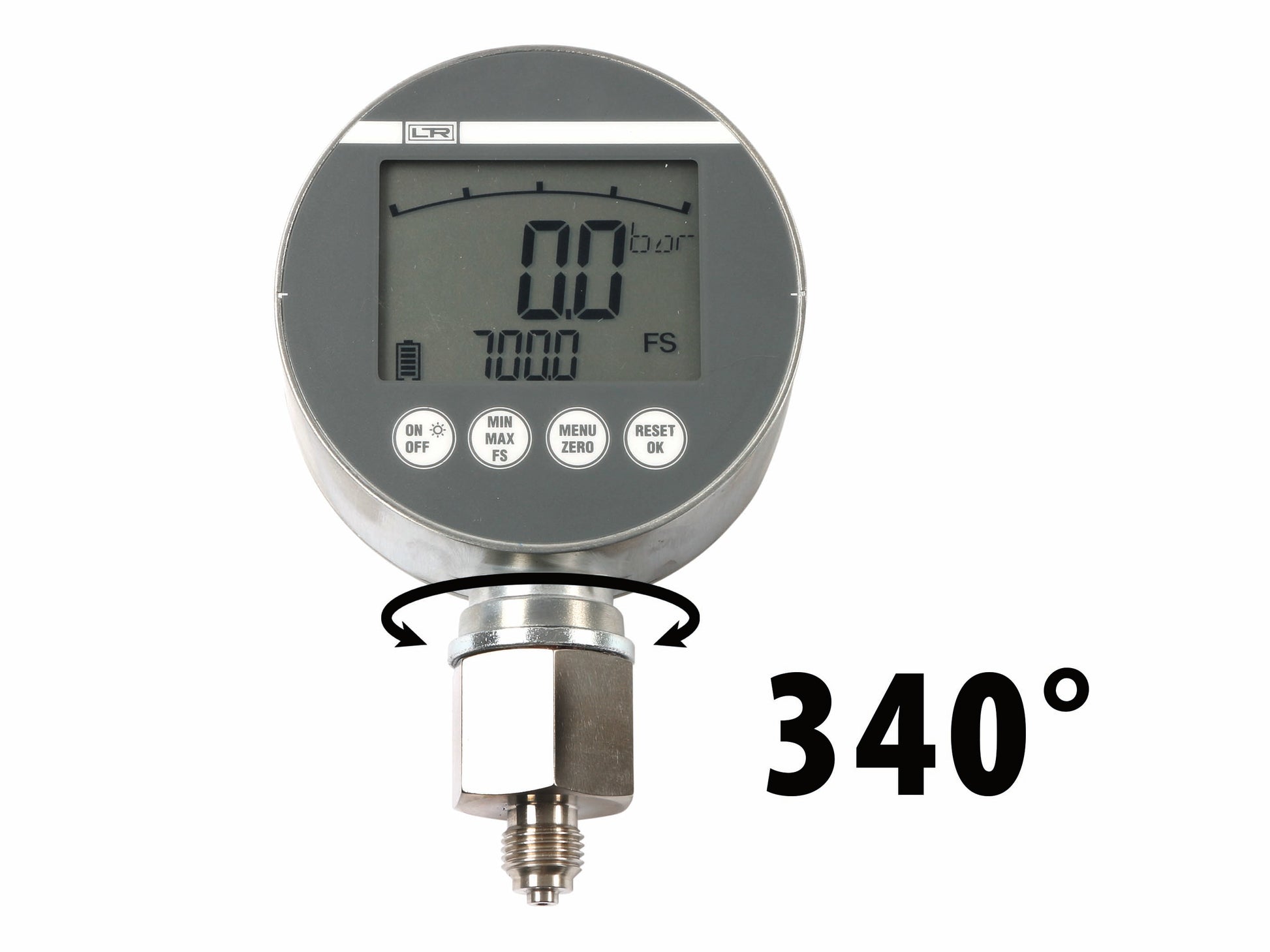

• Functions : Min/Max display, rotatable display (approx. 340°) for flexible reading position
• Operation : Battery operated with a running time of up to 1500 hours
• Connections : Standard thread G 1/2 B, other connections available on request
• Certification : Each device comes with a 3-point factory calibration certificate
• Origin : Made in Germany – certified quality

availability and individual customization

The DM80 digital pressure gauges are not only robust, reliable and long-term stable, but can also be individually configured. Choose the appropriate pressure range for your specific requirements. Custom-made products are also available on request.

areas of application

Ideal for precise pressure monitoring in:

• hydraulic systems
• maintenance and service
• test benches and industrial plants

Advantages

The DM80 series impresses with its simple operation and the ability to not only display pressure measurements but also save them. This enables a quick and precise target-actual analysis of the system pressure - perfectly tailored to your individual needs.
